MOLNAR CM350-LS – Mid-Rise Mobile Scissor Hoist 3.5 tonne

MOLNAR CM350-LS – Mid-Rise Mobile Scissor Hoist 3.5 tonne

$6,314.00



  • Double master & slave hydraulic system, no compressed air or safety lock necessary
  • Control box with push buttons, integrated pump unit and alarm signal
  • Emergency lowering valves can be manually opened
  • Sturdy scissor construction for high directional stability
  • Ramps made from tear plates, for easy drive-on with wet wheels
  • Mechanical synchronisation through cross bar

CONTACT US FOR DELIVERY FEIGHT CHARGES

  • Low minimum height of 105mm suitable for low vehicles and drive over situations.
  • No fixed drive on direction, control box can be installed either side of scissors.
  • Mobile kit delivered as standard consisting of rollers and handle for easy manoeuvrability of scissor
  • 3 year warranty
SKU: N/A Category: Tags: , ,

Description

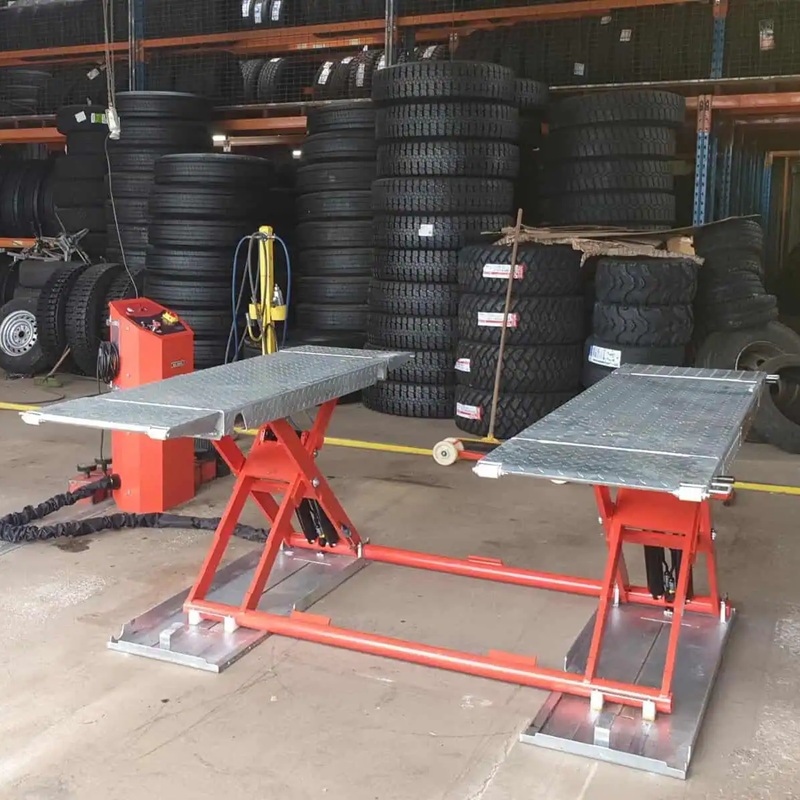

The CM350-LS scissor hoist is mid-rise mobile scissor mounted giving a low profile of just 105mm with an excellent max working height of 1000 mm. The CM350-LS is a mobile scissor so it is not fixed to the ground and therefore movable.

This 3.5 tonne Mid-rise Scissor Hoist is suitable for workshops with limited space. It is ideal for tyre repairer and car body shops, as it allows easy and quick access to all sides of the vehicle.

The low profile platforms are ideal for lifting a large range of vehicles including low skirted sport cars.

Lifting Capacity: 3500 kg
Lifting Height: 1000 mm
Working Height: 105 mm – 1000 mm
Lifting/Lowering Time: 16 seconds (approx.)
Motor Unit: 2.2 kW
Voltage: 230V 50Hz 1 Phase
Platform Length: 1420 mm – 2100 mm
Platform Width: 525 mm
Distance Between Platforms: 900 mm
Minimum Height: 105 mm

Additional information

PHASE TYPE

3 PHASE, SINGLE PHASE
