Description

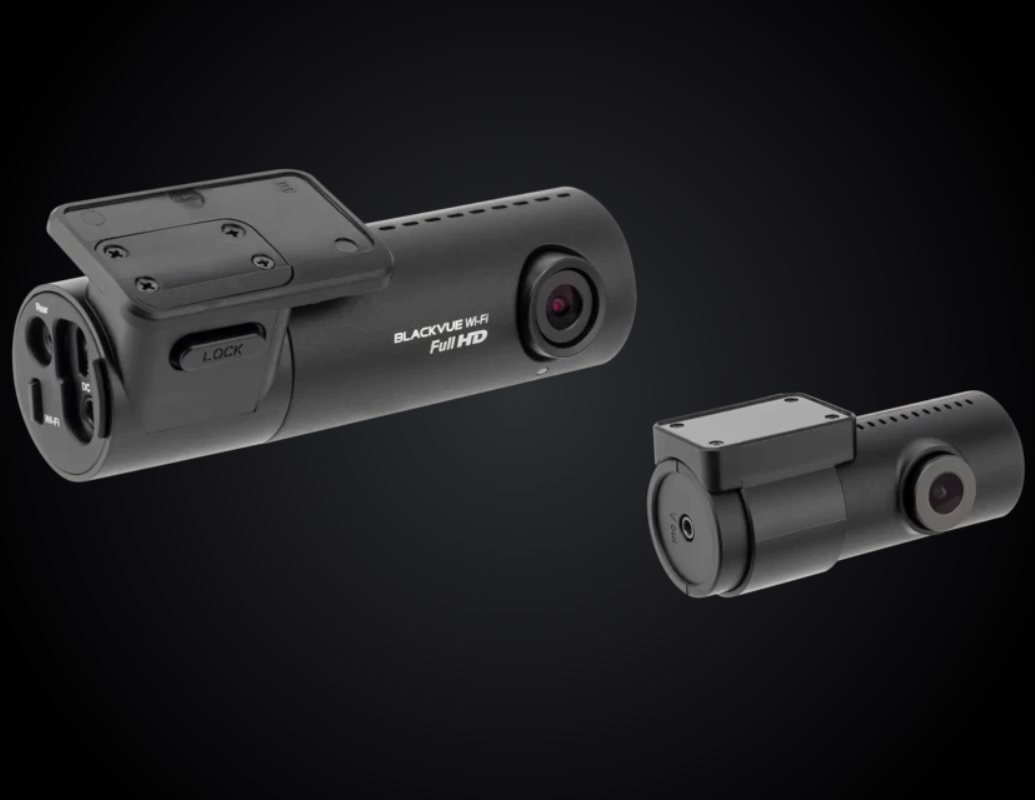

| Model Name | DR590X-2CH |
|---|---|
| Channel | 2 Channel (Front & Rear) |
| Colour / Size / Weight | W 175 (6.88) x L 36 (4.29) x H 85 (3.34) mm (in) / 315g Rear: Black / Width 67.4 mm x Height 25 mm / 25 g |
| Memory | microSD Card (32 GB/64 GB/128 GB/256 GB)
*BlackVue or Samsung Pro MLC Endurance SD cards must be used. |
| Speaker | Built-in Speaker |
| GPS | Optional |
| LED | Recording LED, GPS LED, Wi-Fi LED Security LED, Proximity Sensor LED |
| Sensor | 3-Axis acceleration sensor |
| Battery or Capacitor | Built-in Super Capacitor
Capacitor’s are better as they are not at risk of heat damage which batteries face. |
Camera + Recording
| Recording Mode | Normal Recording Event Recording (Impact Detection) Parking Mode Recording (Impact and Motion Detection).For extended Parking Mode recording, a B112 or B124X dedicated battery pack is recommended. |
|---|---|
| Button | Wi-Fi ON/OFF |
| Camera | Front: Sony STARVIS™ CMOS Sensor (Approx. 2.1MP) Rear: CMOS Sensor (Approx. 2MP) |
| Viewing Angle | Front: Diagonal 139°, Horizontal 116°, Vertical 61° Rear: Diagonal 136.8°, Horizontal 111.3°, Vertical 57.5° |
| Format Free | Yes (Adaptive) |
| Resolution/FPS | Full HD @30fps – Full HD @30fps |
| Image Quality | Highest (12+ 10 Mbps) High (10 + 8 Mbps) Normal (8 + 6 Mbps) |
| Video Codec | H.264 (AVC) |
| Video File Extension | MP4 |
Operating
| Input Voltage | DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V)
Note: USB cables are only 5V and will not power on the dash cam. |
|---|---|
| Current Consumption | Normal Mode (WiFi Off/GPS On): 330mA/hour Parking Mode (WiFi On/GPS Off): 340mA/hour |
| Voltage Cut-off | Built-In |
| Operating & Storage Temp | -20℃ – 70℃ (-4°F – 158°F ) |
| High Temperature Cut-off | Approximately 80℃ (176°F) |
Other
| Wi-Fi | Built-In |
|---|---|
| Software | PC Application
BlackVue Viewer* Windows 7 or higher and |
| GPS | Optional |
| Application | BlackVue Application (Android 5.0 or higher, iOS 9.0 or higher) |
| Microphone | Built-in |
| Origin | Made in Korea |
| Certifications | FCC, CE, RoHS, Telec, WEEE, IC |
| Warranty | 36 Months Warranty (Australian Customers Only)
T&C’s Apply |
