Original price was: $979.00.Current price is: $968.00.


  • UHD 4K Front. FHD 1080P Rear
  • Built in WiFi
  • Built in GPS
  • Native parking mode

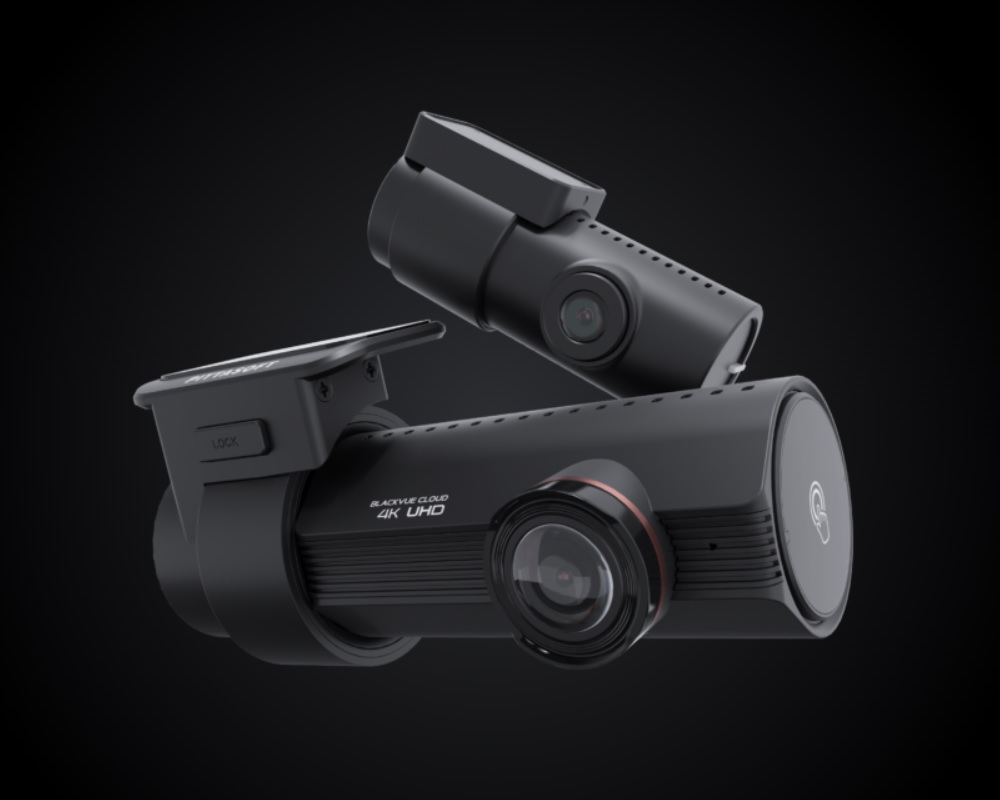

Model Name DR970X-2CH PLUS
Channel 2 Channel (Front + Rear)
Colour / Size / Weight Front: Black / Width 118.6 mm x Height 36 mm / 108 g

Rear: Black / Width 67.4 mm x Height 25 mm / 25 g

Memory microSD Card (64 GB/128 GB/256 GB)

*BlackVue cards must be used.

Speaker & GPS Built-in
LED Front: Security LED, Recording LED, Bluetooth/Wi-Fi/LTE LED
Rear: Security LED
Sensor 3-Axis acceleration sensor
Battery or Capacitor Built-in Super Capacitor

Capacitor’s are not at risk of heat damage which batteries face.

Camera + Recording

Recording Mode Normal Recording
Event Recording (Impact Detection)
Manual Event Recording
Parking Mode Recording (Impact and Motion Detection).For extended Parking Mode recording, a B112 or B130X dedicated battery pack is recommended.
Button Format Button: Press and hold format button for 5 seconds, and after a beep, release the button. Then, press again and hold for 5 seconds and release the button after a beep to format the microSD card.
Touch sensor: Trigger Manual RecordingTouch the sensor to trigger manual recording. Can be disabled in settings.
Camera Front: STARVIS 2 8.4 Megapixel CMOS Sensor
Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
Viewing Angle Front: Diagonal 146°, Horizontal 125°, Vertical 68°
Rear: Diagonal 131°, Horizontal 107°, Vertical 55°
Format Free Yes (Adaptive)
Resolution/FPS Front Camera TRUE 4K UHD (3840×2160) @30fps

Front camera resolution is fixed and cannot be changed to 1080P

Resolution/FPS Rear Camera Full HD (1920×1080) @30fps

Frame rate is different during Parking mode and Wi-Fi > streaming

Image Quality Highest (Extreme): 60+10 Mbps*
Highest: 25+10 Mbps
High: 12+8 Mbps
Normal: 8+6 Mbps*60Mbps bitrates only supported in H.265(HEVC).
Video Codec H.264 (AVC)

H.265 (HEVC)

Video File Extension MP4


Input Voltage DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V)

Note: USB cables are only 5V and will not power on the dash cam

Current Consumption Normal Mode (GPS On/2CH): Avg. 480mA /12V
Parking Mode (GPS Off/2CH): Avg. 370mA /12VActual power consumption may vary depending on use conditions and environment.
Voltage Cut-off Built-in Variable Voltage Cut-off System
11.8V – 12.5V
22.8V – 24V
Operating & Storage Temp -20℃ – 80℃ (-4°F – 176°F )
High Temperature Cut-off Approximately 80℃ (176°F)


Wi-Fi Built-in (802.11n 2.4~2.4835 GHz / 802.11ac 5GHz dual band).
Software BlackVue Viewer* Windows 7 or higher and
Mac OS X Sierra (10.12) or higher.
GPS Built-in (Dual Band: GPS, GLONASS)
4G LTE Optional via the CM100GLTE module
Application BlackVue Application (Android 8.0 or higher, iOS 13.0 or higher)

Some videos may not play on HTC mobile devices due to the resolution of the files

Microphone Built-in
Origin Made in Korea
Certifications Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, KC, WEEE
Warranty 36 Months Warranty (Australian Customers Only)

T&C’s Apply

Additional information

Weight 4 kg
