Description

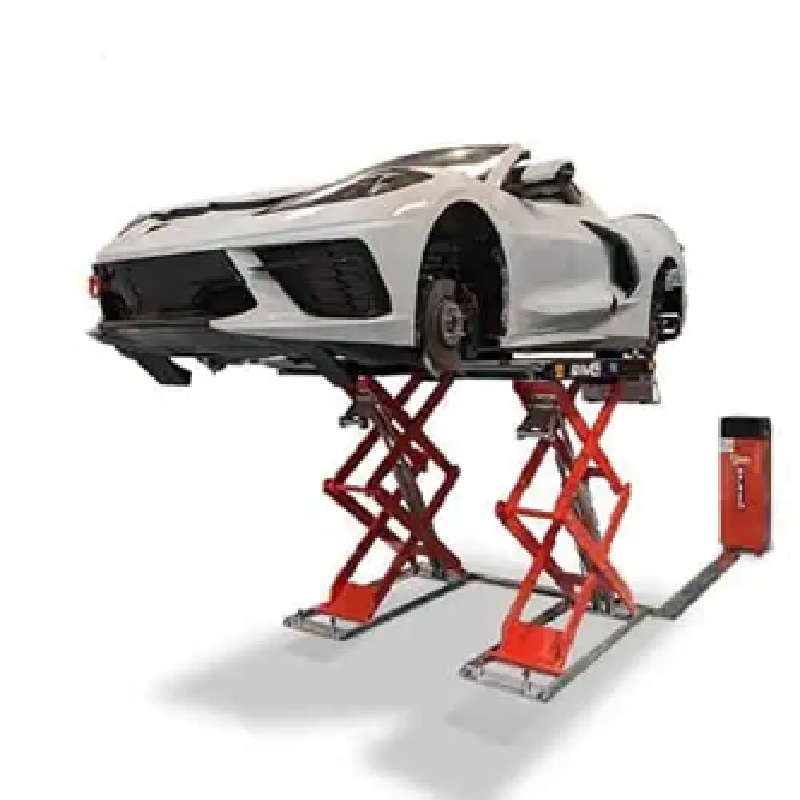

The CM360 scissor hoist is surface mounted giving a low profile of just 110mm with an excellent max working height of 2030 mm. Can be recessed into the ground.
This 3.6 tonne Full Rise Scissor Hoist is suitable for workshops with limited space. It is ideal for tyre repairer and car body shops, as it allows full access to all sides of the vehicle.
The low profile platforms are ideal for lifting a large range of vehicles including low skirted sport cars.
| Lifting Capacity: | 3600 kg |
| Lifting Height: | 2030 mm |
| Working Height: | 110 mm – 2030 mm |
| Lifting/Lowering Time: | approx. 40 seconds |
| Motor Unit: | 3 kW |
| Voltage: |
3 Phase 7A (peak)
1 Phase 20A (peak)
|
| Platform Length: | 1590 mm – 2204 mm |
| Platform Width: | 628 mm |
| Distance Between Platforms: | 800 mm |
| Minimum Height: | 110 mm |
